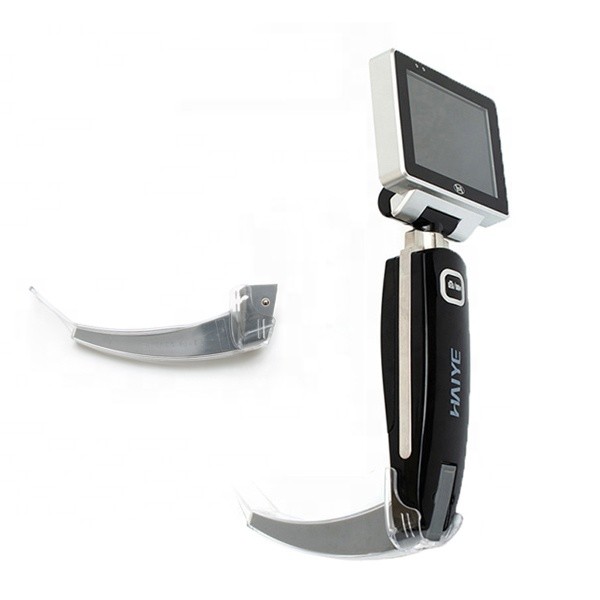

Assisted Tracheal Disposable Video Laryngoscope Intubation Surgical Endoscope
HYHJ 1320
Product Feature
- Digital camera system, vision hd, point of view is reasonable.
- Quick connection, a multi-purpose machine, complete specifications.
- Optimization scheme of electronic, change numerous for brief, namely the will to learn.
- A key photo and video, important images, record at any time.
- Freeze function, capture the moment, easy to analyze.
- Mass storage space, loop recording, easy to read.
- Imported medical grade materials, reasonable structure, super durable.
- High strength protective box, super protection, easy to carry.
- Import lithium battery, charging protection, super long standby.
- Long warranty service, the host for three years, camera system for two years
Technical feature(HYJC-1320)
| Name | Technical term | Technical Index |
| Machine | Display Resolution | 960 x 480 |
| Pixels | 2 million |
| Camera Resolution | 1280 x 720 |
| Viewing angle | 70 ± 2 degree |
| Depth of field | 3~100mm |
| Host key | Freeze frame, take photo and video |
| Material | Medical Stainless Steel |
| Light source | Built-in high power waterproof LED light source |
| Camera | Dual anti-fog, intubation without blind area |
| Interface | USB,TF(Hot plug) |
| Rotate angle | front to back: 0~135 º, left to right: 0~275 º |
| Blades | Suit for different oral structure,3 sizes aseptic packaging for single use |
| Power Adapter | Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output |
| Battery | Charging time | <4h |
| Cycle life of battery | > 800 times |
| Battery type | lithium ion battery |
| Battery working time | continues use ≥ 350 mins |
| Working Condition | Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% |
| atmosphere pressure | 860hpa~1060hpa |
| internal electric source | lithium ion battery,3.7V |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Application of disposable video laryngoscope
It is often used to provoke the patient's epiglottis to expose the glottis, allowing the user to perform tracheal intubation under visual observation. Further optimization and improvement of the appearance and shape of the video laryngoscope will make the video laryngoscope more consistent with the structural characteristics of the upper respiratory tract (especially the difficult airway).
It is suitable for clinical tracheal intubation, simulation exercise, clinical teaching and difficult airway intubation in anesthesiology department, emergency department, ICU/ pediatric department, ambulance and other medical departments at all levels
HYHJ-1320 has 3 different sizes of carema for clients to choose, which can suit for various oral structures; the large carema is for adult, medium for children while the small for the newborns. Each camera system has its own disposable laryngoscope blade to match with:
- Large carema: HYHJ-1320-T1
- Medium carema: HYHJ-1320-T2
- Small carema: HYHJ-1320-T3
Parameters of laryngoscope
1. Vertical distance from the laryngoscope camera to the front of blade:
Large: ≤ 35mm, medium: ≤ 32mm; small: ≤ 28mm
2. Blade length:
Large: 119mm, medium: 95mm; small: 78mm
3. Blades thickness(camera position):
Large/ Medium/ Small: ≤ 10mm
4. Blades angle(degree):
Large: 41, medium: 35; small: 19
Company Display
Haiye is designed to produce practical, durable and easy to use portable video laryngoscope, the whole machine adopts a unique streamlined integrated design, in line with the principles of ergonomics, to minimize the damage to the mouth and throat, most difficult airway intubation can provide an effective solution. Our high standard dust-free assembly workshop, standardized aseptic production workshop, well-equipped laboratory and a high-quality, efficient entrepreneurial team, can provide you an effective solution for difficult airways intubation.
Welcome to inquiry if you have any interests!
OEM order is acceptable.
