Handled Type 3.0 Inch Display Visual Laryngoscope for ICU Emergency Clinical Airway Intubtion
HAIYE MEDICAL EQUIPMENT has been devoted to the R&D and production of products in the video medical field, and has developed successively many kinds of products: direct laryngoscopes, video laryngoscopes, video rigid endoscopes, disposable hysteroscopes, video flexible endoscopes, disposable uroscopes...
Choose HAIYE, Choose Professional!

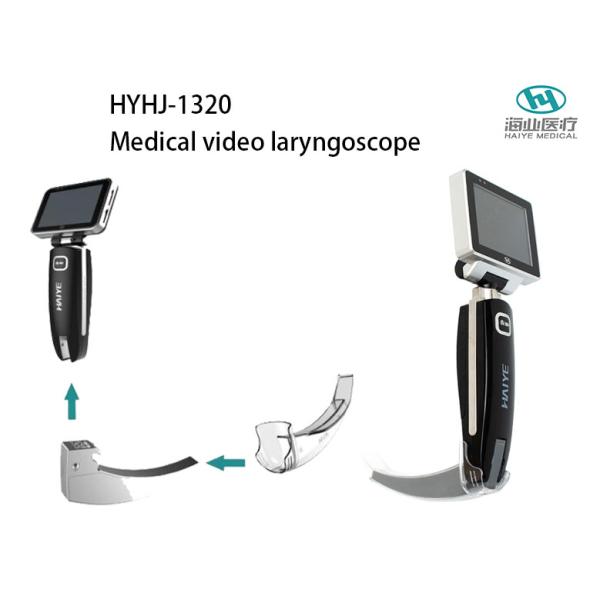

Main Product Display-HYHJ-1320 Video laryngoscope
Large Display Screen over 6hs Battery Life Suitable for Different Size Blades CMOS Double anti-fog Carema
Disposable Aseotic Packagin Blades reduce Cross Infection One Key Boot Without Pre Heating
technical parameter of HAIYE video laryngoscope 1320
◆ Resolution: 960×480 Pixels: 2 million Effective depth of field: 3～100mm
◆ Field of view: 70±2º Battery life: ≥6h Charging time: ≤4h
◆ Battery life: cycle charging > 800 times Display: 3"TFT color display
◆ Built-in high-power waterproof LED light source, illuminance: ≥3000lux
◆ The rotation angle of the display back and forth: 0º～135º Left and right rotation angle: 0º～275º
Hd output, data storage, large capacity export and other functions, the product has photography, freeze frame, video
Technical Feature
| Name | Technical term | Technical Index |
| Machine | Display Resolution | 960 x 480 |
| Pixels | 2 million |
| Carema Resolution | 1280 x 720 |
| Viewing angle | 70 ± 2 degree |
| Depth of field | 3~100mm |
| Host key | Freeze frame, take photo and video |
| Material | Medical Stainless Steel |
| Light source | Built-in high power waterproof LED light source |
| Camera | Dual anti-fog, intubation without blind area |
| Interface | USB,TF(Hot plug) |
| Roatate angle | front to back: 135 º, left to right: 275 º |
| laryngoscope | 3 Disposable blades, aseptic packaging for single use |
| Adapter | Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output |
| Battery | Charging time | <4h |
| Cycle life of battery | > 800 times |
| Battery type | lithium ion battery |
| Battery working time | continous use ≥ 350 mins |
| Working Condition | Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% |
| atmosphere pressure | 860hpa~1060hpa |
| internal electric source | lithium ion battery,3.7V |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
|
|
Handled Type 3.0 Inch Display Visual Laryngoscope for ICU Emergency Clinical Airway Intubtion Images
|
